Entity Nodes

Entity nodes represent a specific type of object (like a person, account, or identity document).

They are also independently searchable, and associable with a case at the case detail level.

Entity Node Operations

Adding an Entity Node to a Case

To add an entity node to a case, click the Entity button in the add node menu. A pop up will appear with a list of entity base types and custom subtypes.

Entity Node Types

Entity nodes can be based off of either a predefined base type or a custom type. Custom type definitions require a base type selection. Custom types can be created in the Configuration: Entity Definition section by a library administrator and apply to all cases within the entire library.

Entity Node Base Types

Base Type	Base Fields	Example Custom Types	Description

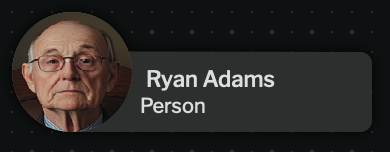

Person	Photo	Student Juvenile Employee	Represents a person in the real world.

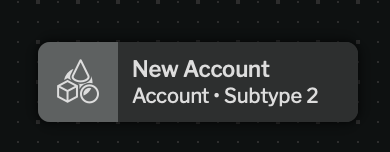

Account	Account Subtypes	Bank Account Facebook Account User Account	Represents an account

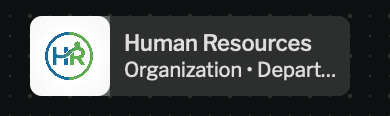

Organization	Organization Subtypes Logo Type*	Department Company Street Gang	Represents an organization.

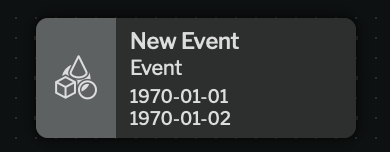

Event	Event Date	Incident Meeting Party Attack	Represents something that occurred at a location (real or virtual) at a point or range in time.

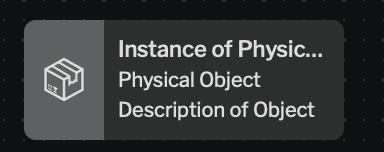

Physical Object	Object Subtypes Short Description Base Object*	Vehicle Firearm	Represents a physical object.
Fungible Object	Quantity Unit Short Description	Currency Drugs Gasoline	Represents an object with no unique identifier.
Virtual Object	<None>	Design (Make/Model) Content Item	A virtual object is any entity that represents a conceptual object and is not covered by other base types.

*(Only applicable for an instance of the base type, not a custom type)

Entity Node Custom Types

Custom types can have additional fields, which are defined in the configuration for the custom type. These fields are searchable in Entity Search, and can be used to create more specific entity types and standardize how data is captured for a given entity type.

For more on configuring entity node custom types, see Configuration: Entity Definition.

Ad Hoc Fields

Ad hoc fields are a type of field that can be added to an entity node. They are not predefined and can be customized on an ad-hoc basis for each individual entity node. This allows for flexibility in data capture, preventing the need to predefine every possible data point that could be relevant to an entity.

For the different types of fields supported by entity nodes, see Configuration: Field Types.

Adding an Ad Hoc Field to an Entity Node

To add an ad hoc field to an entity node, click the Add Ad Hoc Field button in the left panel of an entity node.

Editing an Ad Hoc Field

All ad hoc fields on an entity node will be displayed in the left panel of the entity node and can be edited by clicking into the field.

Deleting an Ad Hoc Field

To delete an ad hoc field, click the X icon in to the right of the field.

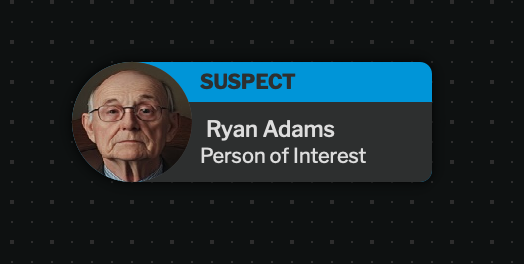

Entity Roles

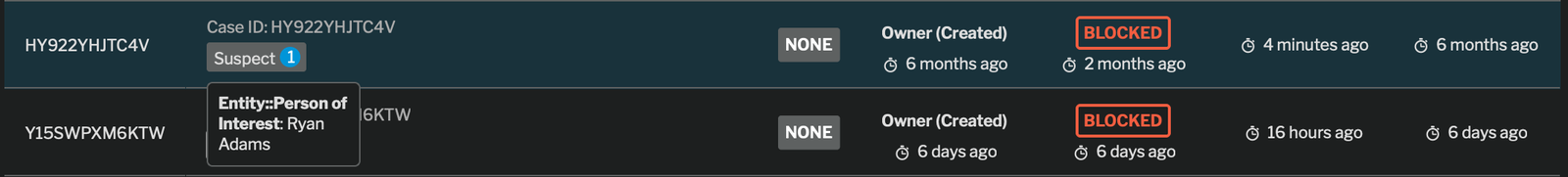

Assigning a role to an entity node promotes that entity (and its’ data) to be displayed at the Case Level (and makes it visible to summary viewers).

This means that that entity’s relationship to the case is material to the case overall.

New roles for an entity type can be created in the entity type manager. Entity roles can only be added to customized entity types, not base entity types.
